2-10kV Medium Voltage Thyristor Power Regulators For Heating Application

Short Description:

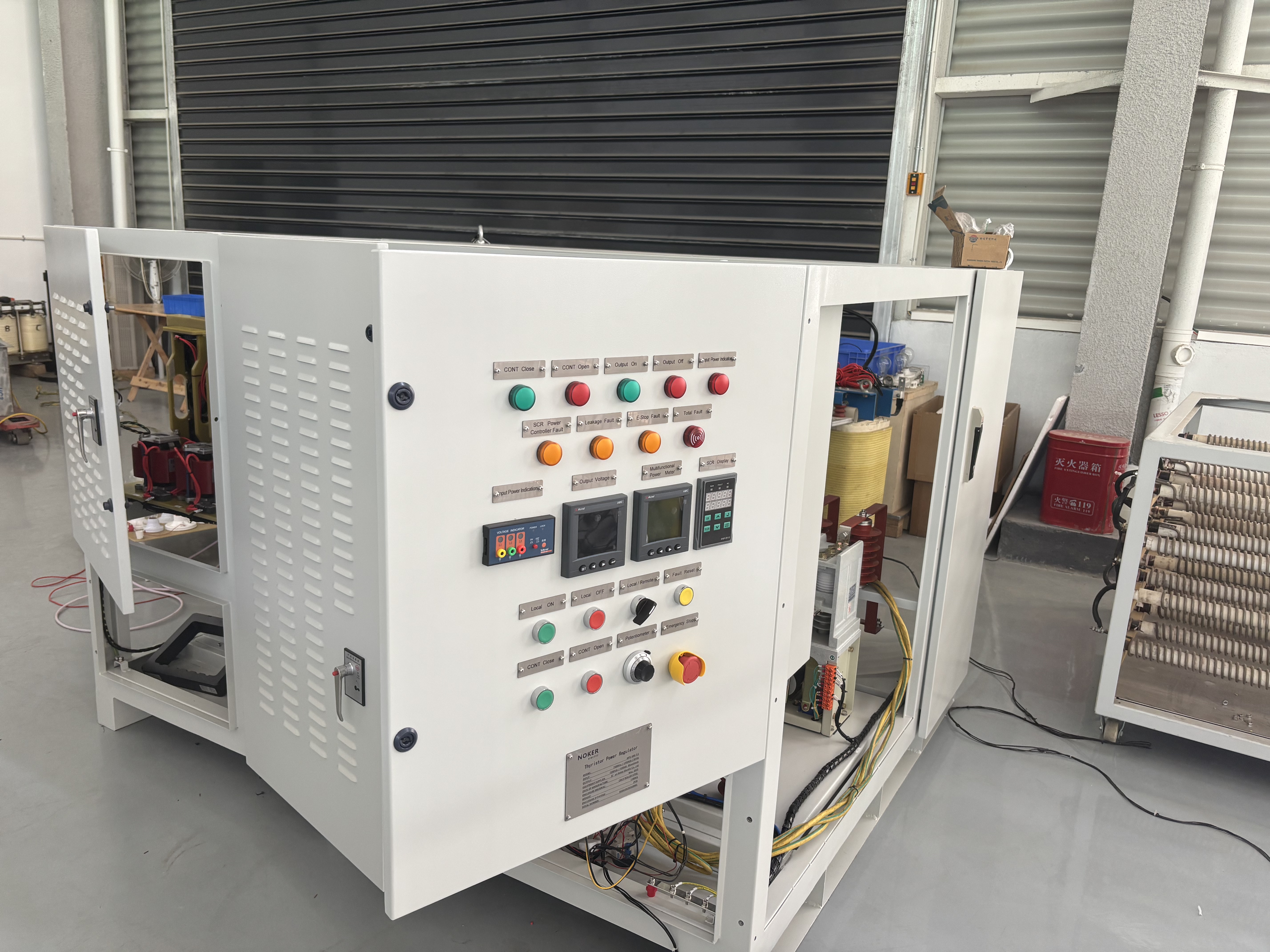

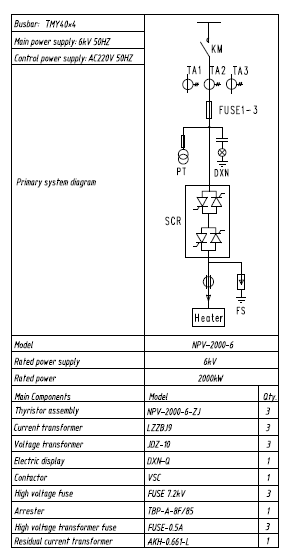

Medium voltage thyristor controlled power regulator is designed with up-to date concept, mainly applicable to the control of and protection for the electric heater. The thyristor power regulator is composed of several thyristors in series-parallel, income contactor, main control unit, current transformer, voltage transformer, arrester. It can meet different current and voltage requirements.

Medium voltage thyristor controlled power regulator have been widely used in electric heater with rated voltage 3000 to 10000V. It is the ideal device for high voltage electric heater control.

Send email to us

Product Detail

Product Tags

Features

High voltage thyristor power regulator is the new type ac control device to control the high voltage electric heater.

1. This high voltage thyristor power regulator system has the following characteristics: Using a high-performance CPU as the control core, with rich parameter content and complete
protection functions, provides reliable assurance for the system's long-term temperature operation.
2. The power human-machine interface uses an LED digital display, along with a keyboard for parameter setting, making operation convenient.
3. Power supply integrates phase-shifting open loop, phase-shifting closed loop (constant voltage, constant current, constant power), zero-crossing mode and other control methods, meeting various control needs of users.
4. The power supply has multiple analog/digital input and output channels with free programming functions, making it convenient for users to configure. Additionally, both input and output interfaces use isolation technology, which provides strong anti-interference capabilities.
5. The power supply is equipped with a standard RS485 communication interface (MODBUS RTU protocol), supporting the expansion of various common communication functions;
6. The power output responds quickly and has good stability. The power supply uses a high-performance fan and a high-quality aluminum profile heat sink, which makes it highly reliable, efficient in heat dissipation, and easy to maintain and repair.

Specification

Basic parameters
Type of load	Three phase electric heater
AC voltage	3kv, 6kv, 10kv, 11kv
Power frequency	50/60hz±2hz
Phase sequence	Allowed to work with any phase sequence
Control power supply	AC220V±15%
Transient over voltage	Dv/dt snubber network
Ambient condition	Ambient temperature: -20°C -+50°C
	Relative humidity: 5%----95% no condensation
	Altitude less than 1500m (derating when altitude ismore than 1500m)
Protection function
Phase lose protection	If any phase of the input three-phase power supply is missing, the system will alarm and stop.
Over-current protection	During bypass operation, if the measured operating current exceeds the overcurrent setting value, the system will trigger alarm and stop within the set period.
Module overheating	The system will trigger alarm and stop if the temperature of the driving modules is greater than 85 degree as detected by the fiber optic.
Over-voltage protection	If the detected grid voltage of the input three-phase power supply exceeds the overvoltage protection set value, the system will trigger alarm and stop within the set period.
Under-voltage protection	If the input three phase power supply's grid voltage falls below the underoltage protection set value, the system will trigger alarm and stop within the set period.
Short circuit protection	If the measured current exceeds the set value of short circuit overcurrent, the system will trigger alarm and stop within the set period.
Output phase loss protection	If there is a phase loss at the output end connected to the motor, the system will trigger alarm and stop.
Leakage protection	If the zero-sequence current exceeds the set value, the system will trigger the alarm and stop within the set period.
Communication
Protocol	Modbus RTU
Interface	RS485

Model

Model	Voltage level	Rated power	Dimensions of the cabinet
	(kV)	(kW)	H(mm)	W(mm)	D(mm)
NPV-500-3	3	500	2300	1000	1500
NPV-900-3	3	900	2300	1000	1500
NPV-1250-3	3	1250	2300	1200	1500
NPV-1800-3	3	1800	2300	1500	1500
NPV-2000-3	3	2000	2300	1500	1500
NPV-500-6	6	500	2300	1000	1500
NPV-1000-6	6	1000	2300	1000	1500
NPV-1500-6	6	1500	2300	1000	1500
NPV-2000-6	6	2000	2300	1000	1500
NPV-2500-6	6	2500	2300	1200	1500
NPV-3000-6	6	3000	2300	1200	1500
NPV-3500-6	6	3500	2300	1500	1500
NPV-4000-6	6	4000	2300	1500	1500
NPV-500-10	10	500	2300	1000	1500
NPV-1000-10	10	1000	2300	1000	1500
NPV-1500-10	10	1500	2300	1000	1500
NPV-2000-10	10	2000	2300	1000	1500
NPV-2500-10	10	2500	2300	1000	1500
NPV-3000-10	10	3000	2300	1200	1500
NPV-3500-10	10	3500	2300	1200	1500
NPV-4000-10	10	4000	2300	1200	1500
NPV-5000-10	10	5000	2300	1500	1500
NPV-6000-10	10	6000	2300	1500	1500

In order to better understand your needs, before you order the high voltage thyristor power controller, you need offer some more informations for us to confirm.

1. Heater parameters

2. Power supply parameters

3. Control requirement

The high voltage thyristor power controller are widely used in electric heater fields. With its superior performance and high reliability, it has gained the trust of an increasing number of customers.
