Noker 3 Phase 400v 500a 600a 800a Furnace Thermocouple Heating Scr Power Controllers

Short Description:

NK30E series power controller is based on many years of application experience in the electric heating industry, a high-end power regulator product with optional multi-function card, extensible analog output, keyboard external induction, MODBUS TCP/IP, Profibus DP, true RMS control and other functions.

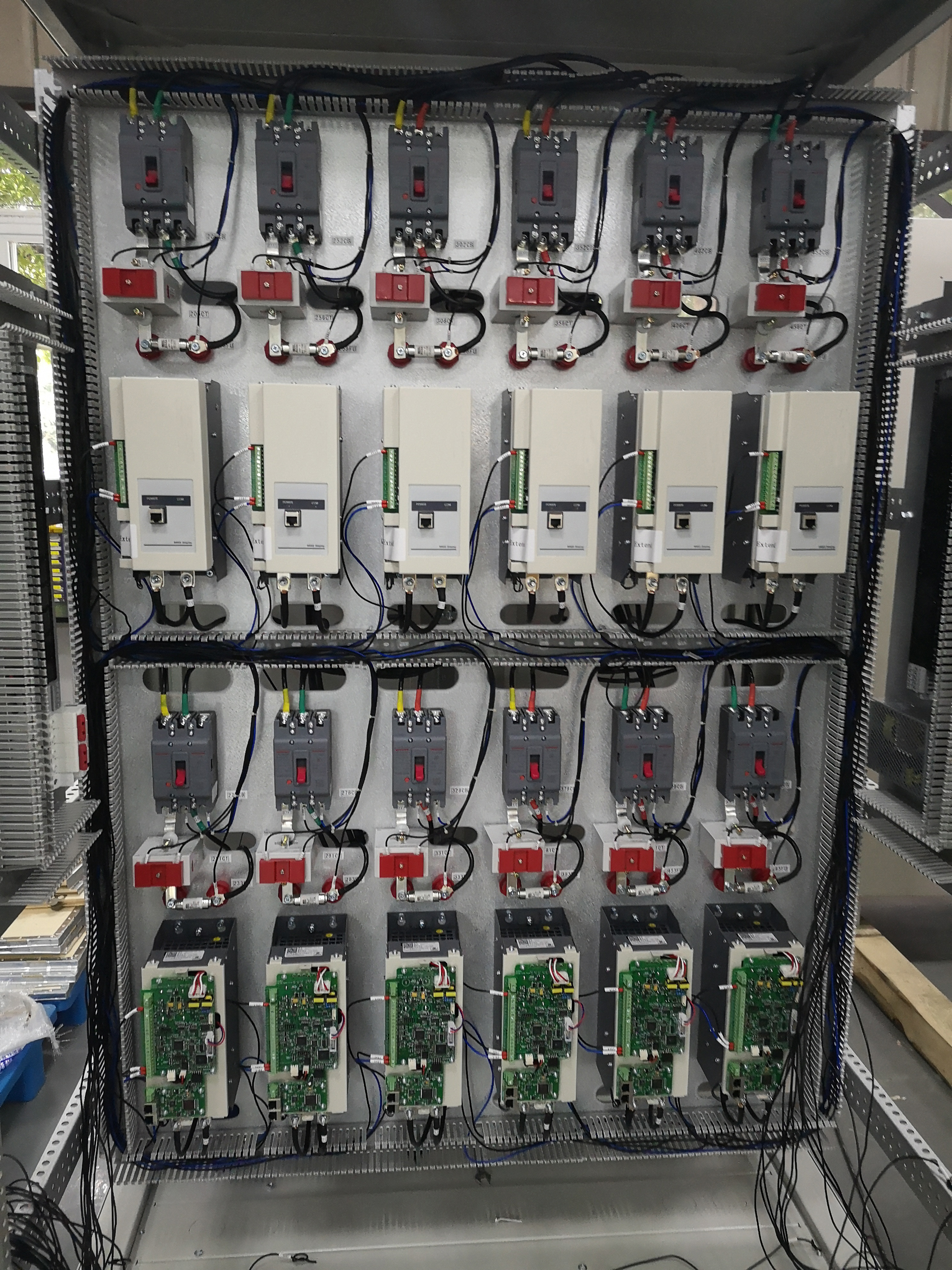

The product has been widely used in float glass production line, monocrystalline silicon, polysilicon heating and other electric heating occasions, and has been highly appraised by customers.

Send email to us

Product Detail

Product Tags

Video

Features

1.Built-in High-performance, Low-power Microcontroller
2.Peripheral Features
2.1.Support 4-20mA and 0-5/10V(potentiometer) two given
2.2.Two switch inputs
2.3.Wide Range Of Primary Loop Voltages( AC260- 440V)
3.Efficient cooling solution such small size, light weight

4.Practical alarm function
4.1.Phase failure
4.2.Overheat
4.3.Overcurrent
4.4.Load break
5.One relay output
3 A, A C 2 5 0 V
3 A, D C 3 0 V
6.To facilitate centralized control RS485 communication

Specification

Item	Specification
Power supply	Main power: AC260--440v, control power: AC160-240v
Power frequency	45-65Hz
Rated current	25a---800a
Cooling way	Forced fan cooling
Protection	Phase lose, over current, over heat, overload, load lose, frequency fault
Analogue input	Two analogue input, 0-10v/4-20ma/0-20ma
Digital input	Two digital input
Relay output	One relay output
Communication	Modbus communication
Optional card	DA output, remote display, Profibus-DP, Modbus TCP/IP, TRMS
Trigger mode	Phase shift trigger, zero-crossing trigger
Accuracy	±1%
Stability	±0.2%
Environment Condition	Below 2000m. Rise the rate power when the altitude is more than 2000m.Ambient Temperature: -25+45°C Ambient Humidity: 95%(20°C±5°C) Vibration<0.5G
