Three Phase Digital Phase Control Dc Thyristor Power Suppy For Electric Heater

Short Description:

NK30T series three phase digital thyristor power regulator adopts the latest power electronic control technology, thermal simulation technology, with high control precision, small size and other characteristics.

Thyristor power regulator is widely used in general electric heating, float glass production line, monocrystalline silicon, polysilicon heating, metal material molding and other occasions, has been highly praised by our customers.

Send email to us

Product Detail

Product Tags

Video

Features

Thyristor power supply, also known as dc thyristor power supply is used to control power delivery. They are designed to vary the ac voltage across the resistive&inductive loads. The thyristor power supply provide a smooth way of power delivery to load. Unlike conactors, not have any electromechanical movemen.Thyristor power supply includes the back to back connect silicon rectifier(scr), trigger pcb board, current transformers, temperature transformer. By the trigger pcb board to control the thyristor by phase angle&zero cross burst two models. The current transformers detect the three phase current, as the constant current control and to be the current protection. The temperature transformers detect the heatsink temperature to protect the Scr to be safe.

1. Built-in high performance, low power microcontroller;
2. Peripheral features;
2.1. Support 4-20mA and 0-5V/10v two given;
2.2. Two switch inputs;
2.3. Wide range of primary loop voltage(AC110--440V);
3. Efficient cooling solution, such small size, light weight;
4. Practical alarm function;

4.1. Phase failure;
4.2. Overheat;
4.3 Overcurrent;
4.4. Load break;
5. One relay output, 3A AC250V, 3A DC30V;
6. To facilitate centralized control RS485 communication;

Noker Electric Thyristor power regulators

Specification

Item	Specification
Power supply	Main power: AC260--440v, control power: AC160-240v
Power frequency	45-65Hz
Rated current	25a---320a
Cooling way	Forced fan cooling
Protection	Phase lose, over current, over heat, overload, load lose
Analogue input	Two analogue input, 0-10v/4-20ma/0-20ma
Digital input	Two digital input
Relay output	One relay output
Communication	Modbus communication
Trigger mode	Phase angle trigger, zero-crossing trigger
Accuracy	±1%
Stability	±0.2%
Environment Condition	Below 2000m. Rise the rate power when the altitude is more than 2000m.Ambient Temperature: -25+45°CAmbient Humidity: 95%(20°C±5°C)Vibration<0.5G

Terminals

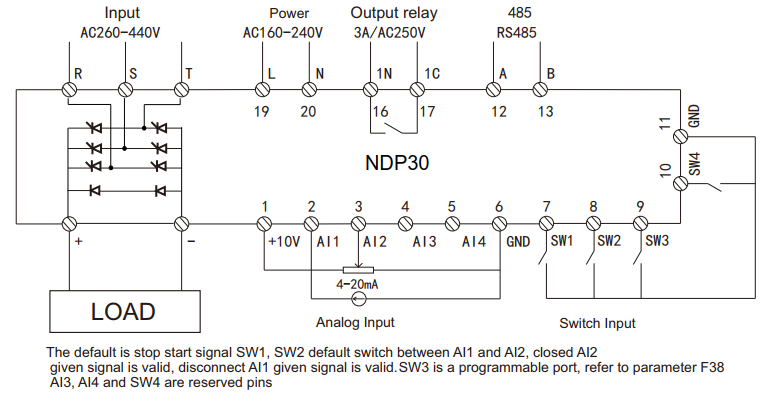

Thyristor power supply with a wide power supply rang from 260-440v, support 0-10v/4-20mA analogue input, 2 digital input, modbus communication can be used to control the scr power supply remotely. If you need with PID temperature module, it is optional. You need not add additional temperature module anymore.

Keyboard operation

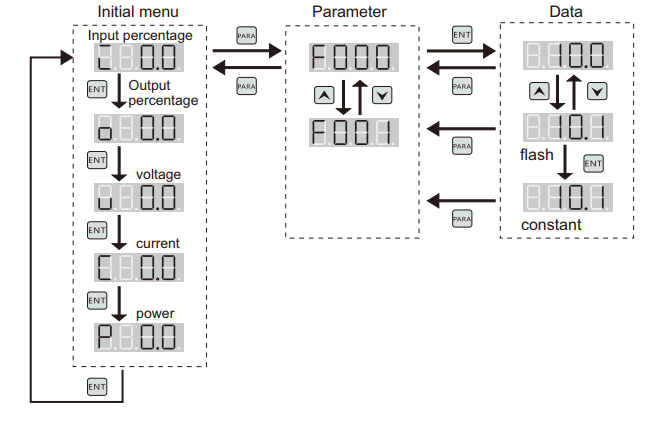

The three phase thyristor power supply adopts 4-bit digital tube display, the eye-catching digital tube display brightness is high, good reliability. Can display all parameters and status of the scr power supply, fault information. The humanized design is very convenient for the power supply field data setting and status display.

Application

noker=thyristor_power-controller_pcb_board

Three phase digital thyristor power supply supports resistive and inductive two type loads. Some applications scr power supply widely be used:

1.Holding Furnaces
2.Silicon Carbide/MoSi2 heating elements furnaces
3.Aluminium Melting Furnaces
4.Air Handling Units
5.Dehumidifiers
6.Boilers
7.Multi-zone heating for manifold moulds
8.Hot Air Generators and Hot Air Dryers
9.Paper and Printing Drying Ovens
10.Microwave dryers
11.Multi-zone Drying and Curing Ovens
12.Heat Transfer Printing Machines
13.Preheating tunnel ovens made using IR heaters
14.Plastic Pipes and Sheets extrusion
15.Metal sheets welding systems
