Analog Current 4-20mA Phase Angle Single Phase Thyristor Scr Power Regulator

Short Description:

In order to continuously improve the response speed, control accuracy, reliability of power controller products. Based on the latest power electronics technology, our company has developed high-end NK10E series of high-performance functional single phase thyristor scr power regulator.

The single phase thyristor scr power regulator adopts the latest algorithm, powerful. Multifunctional extension interface is provided to meet the requirements of electric heating in most occasions..


Product Detail

Product Tags

Video

Features

Scr power regulator, also known as scr power controller is used to control power delivery. They are designed to vary the ac voltage across the resistive&inductive loads. The thyristor power controllers provide a smooth way of power delivery to load. Unlike conactors, not have any electromechanical movemen. Scr power regulator includes the back to back connect silicon rectifier(scr), trigger pcb board, current transformers, temperature transformer. By the trigger pcb board to control the thyristor by phase angle&zero cross burst two models. The current transformers detect the three phase current, as the constant current control and to be the current protection. The temperature transformers detect the heatsink temperature to protect the Scr to be safe.

1.Built-in High-performance, Low-power Microcontroller
2.Peripheral Features
2.1.Support 4-20mA and 0-5V (potentiometer) two given
2.2.Two switch inputs
2.3.Wide Range Of Primary Loop Voltages AC110 ----440V
3.Efficient cooling solution such small size, light weight
4.Practical alarm function

4.1.Phase failure
4.2.Overheat
4.3.Overcurrent
4.4.Load break
5.One relay output
3 A, AC 2 5 0 V
3 A, D C 3 0 V
6.To facilitate centralized control RS485 communication

vava (4)

Specification

Item Specification
Power supply Main power: AC110--440v, control power: AC198-242v
Power frequency 45-65Hz
Rated current 25a---800a
Cooling way Forced fan cooling
Protection Phase lose, over current, over heat, overload, load lose, frequency fault
Analogue input Two analogue input, 0-10v/4-20ma/0-20ma
Digital input Two digital input
Relay output One relay output
Communication Modbus communication
Optional card DA output, remote display, Profibus-DP, Modbus TCP/IP, TRMS
Trigger mode Phase shift trigger, zero-crossing trigger
Accuracy ±1%
Stability ±0.2%
Environment Condition Below 2000m. Rise the rate power when the altitude is more than 2000m.Ambient Temperature: -25+45°C

Ambient Humidity: 95%(20°C±5°C)

Vibration<0.5G

Terminals

vava (5)

Single phase thyristor scr power regulator with a wide power supply rang from 110-440v, support 0-10v/4-20mA analogue input, 2 digital input, modbus communication can be used to control the scr power regulator remotely. If you need with PID temperature module, it is optional. You need not add additional temperature module anymore.

Keyboard operation

scr power regulator panel

The single phase thyristor scr power regulator adopts 5-bit digital tube display, the eye-catching digital tube display brightness is high, good reliability. Can display all parameters and status of the power regulator, fault information. The humanized design is very convenient for the power regulator field data setting and status display.

Dimension

vava (7)

The shell of the single phase thyristor scr power regulator is made of high quality cold rolled steel plate, the surface is treated with anti-oxidation, and the powder is treated with electrostatic spraying, which has the characteristics of high temperature resistance and anti-oxidation. The power regulator has compact structure design, small volume and light weight.

Application

svav (1)
svav (2)
svav (3)
Noker High Performance Phase Angle 150a 200a 300a 500a 600a 800a 1 Phase Furnace Temperature Scr Heater Controller

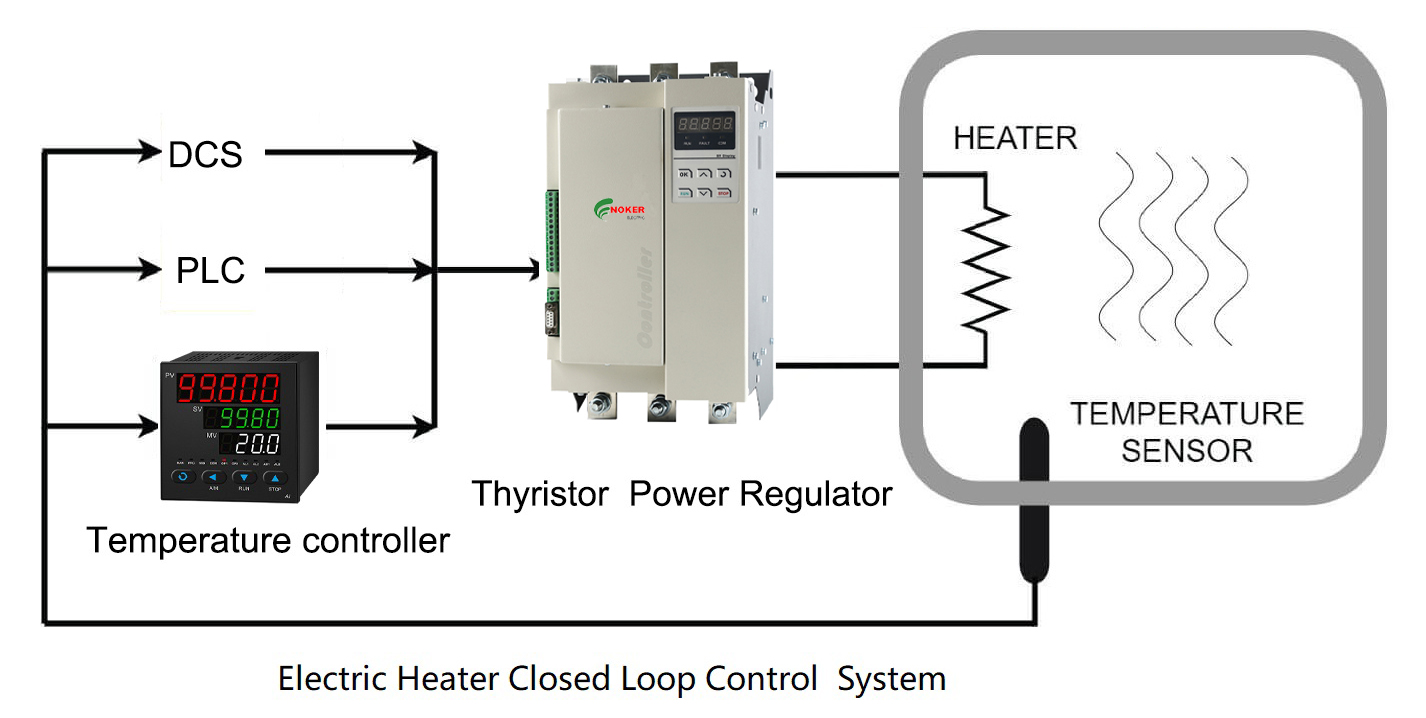

Single phase thyristor scr power regulator widely used with resistive and inductive loads. Some applications scr power regulator widely be used:

1. Aluminium melting furnaces;

2. Holding furnaces;

3. Boilers;

4. Microwave dryers;

5. Multi-zone drying and curing overs;

6. Plastic injection moulding requiring multi-zone heating for mainfold moulds;

7. Plastic pipes and sheets extrusion;

8. Metal sheets welding systems;

Customer service

1. ODM/OEM service is offered.

2. Quick order confirmation.

3. Fast delivery time.

4. Convenient payment term.

At present, the company is vigorously expanding overseas markets and global layout. We are committed to becoming one of the top ten export enterprises in China’s electrical automatic product, serving the world with high-quality products and achieving a win-win situation with more customers.
